Datos del producto:
Pago y Envío Términos:
|
Pérdida de inserción: | UPC<0.2dB, APC<0.3dB | Cable aplicable: | 3,1 x 2,0 milímetros de cable de descenso |
---|---|---|---|
Polaco: | APC, UPC | nombre: | Conector rápido plástico |
material: | Plástico o de acero | uso: | FTTH, LAN, PON&Optical CATV |
Modo: | SM, MILÍMETRO | certificado: | ISO9000, ROSH |
Empaquetado: | Las bolsas de plástico | Tipo: | componentes de la fibra óptica |
Puerto: | Shenzhen |

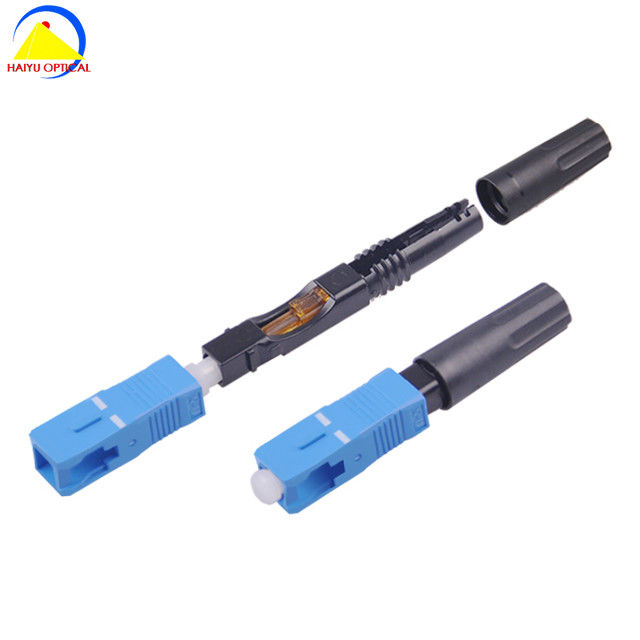

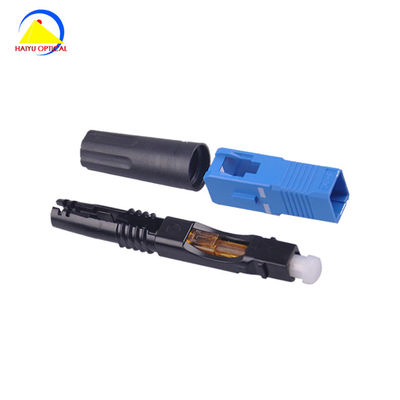

Fiber Optic Fast Connector designed for FTTH
Plastic fast connector:
1. Easy to operate can save time
2. 100% qualified, reduce the maintenance cost.
3. Easy to assembling with mechanical splice and no polishing
4. High stablity ,low insertion loss ,high return loss.
Plastic fast connector parameters:
ITEM | Technical Parameters |
Application | FTTH indoor&outdoor |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insertion loss | ≤ 0.2dB(1310nm & 1550nm) |
Return loss | ≤ -50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature | -40~+75°C |
Plastic fast connector application:
· Premise environments
· Connections at the desk for LAN environments
· Patch panels
· Direct equipment termination
· Fiber to the Subscriber (FTTx) applications
· Repair/replacement requirements
· Equipment test leads
