On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Ampliación de imagen :  On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station

Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: Haiyu Optical
Certificación: ISO9001, CE, ROHS
Número de modelo: HYG-RRU-DLC-MM-040
Pago y Envío Términos:
Cantidad de orden mínima: 1-9 pedazos
Precio: $6.80
Contacto
Descripción detallada del producto
Color del cable: Negro Quanlity de la base: 2
Modo del cable: 50/125um con varios modos de funcionamiento Diámetro de alambre: 7,0 milímetros
Pérdida de inserción: <> Pérdida de vuelta: >DB =35
Tipo del conector: DLC/PC Gama de funcionamiento de los temporeros: -40~85°C
Longitud de onda: 850 nanómetro longitud: los 40m
Venta de unidades: Artículo solo Solo tamaño del paquete : 38X38X12 cm
Solo peso bruto: 3,000 kilogramos Tipo del paquete: cada uno lleno con la película plástica, después puso en cartón.
Alta luz:

Cordón de remiendo de la fibra óptica de FTTX

,

Cordón de remiendo del SC de la envoltura de LSZH

,

Ventajas del remiendo de la fibra óptica de FTTH

On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station

Product Description
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 0

On sales 40M DLC multimode outdoor armour Optical fiber protected branch patch cable for 3G Base Station



Model: Optical Cable Assembly, DLC/PC, Multimode 50/125,

GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable

(ARMOURED TYPE) Length= 40m

       With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
     DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.



On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 1
DLC multimode Outdoor Protected Branch Cable Performance Parameter
Name
DLC multimode Outdoor Protected Branch Cable
Ferrule type
zirconia ceramics ferrule
Model
HYG-PA-RRU-MM-DLC-040
IL
≤0.3dB
Fiber model
Multimode 50/125
RL
≥35dB
Fiber core
2
Durability
≥1000 times
Jacket
7.0mm LSZH
Wavelength
850 1300nm
Length
40meter
Working temperature
-40℃~+80℃
DLC multimode Outdoor Protected Branch Cable Specification

Description
Standard
Cable Model
GYFJH-4B1  / GYFJH-2B1 / GYFJH-2A1

Number Optic-cable Core
2

Weight Kg/km
45.0

Outside Dia. mm
Φ7.0±0.2

Outer Sheath
material
LSZH
YD/T 1113-2001
color
BLACK

Fiber core
Fiber Type
G.652D

sheath color
white

Sheath material
LSZH

Out-Dia fiber for Tight layer
0.90±0.05 mm

Fiber specification
9/125(G652D)

Allowable Tension
Short term ≥500N

Long term ≥300N

Mini Bending radius
10D

Working life
≥25years


*all materials confirm to RoHS

Features

* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 2

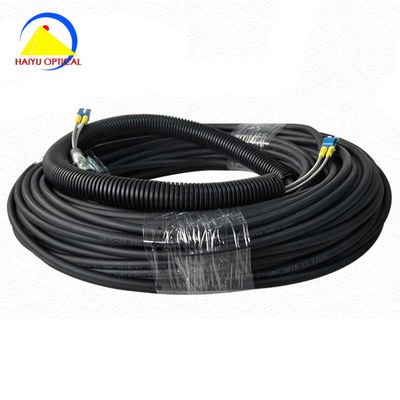

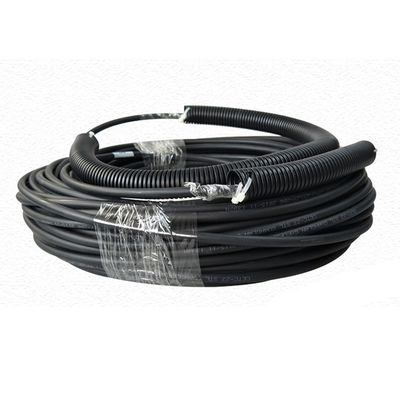

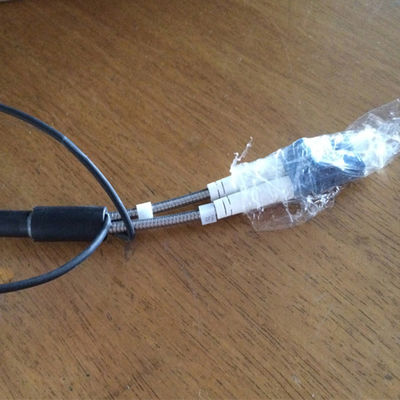

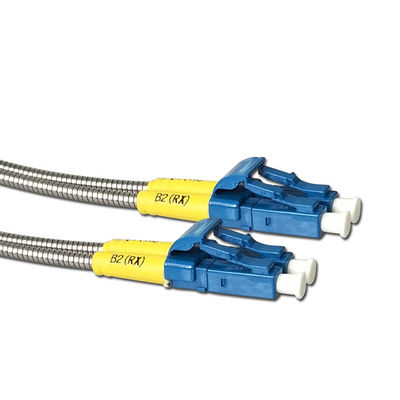

Detailed Images
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 3
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 4
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 5

Click here to see more products.

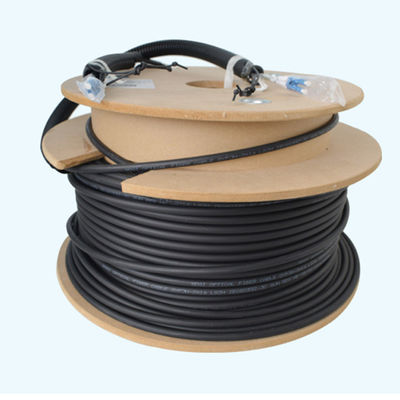

Packing & Delivery
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 6
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 7

Reliable Package.

Each cable good packed in roll with label and test report, then use high quality carton to protect from strike and water.

Fast Delivery.

Fast and safty delivery cooperated with alibaba. 1~4 days to USA, 1~2 days to Japan, Korea and Southeast Asia, 4-7 days to Europe, South America and Africa.

Our Company

Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television


Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China

Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.

On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 8
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 9
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 10

Quality Assurance

Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high
reliability, low cost and diverse product range.

All our products are compliant with Rohs , CE and 5S system.

On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 11

Click here for more.

Contact US
On Sales 40M DLC Multimode Outdoor Armour Optical fiber Protected Branch Patch Cable for 3G Base Station 12

OEM & ODM is accepted, any questions welcome to contact us.
